1.6/5.6 Series
Specifications
Material:
|
Parts Name |
Material |
Finish |
|
Plug |
Body/Metal Parts: Brass per QQ-B-626 |
Nickel |
|
Outer Contacts: Phosphor Bronze per QQ-B-750 |
Gold | |
|
Center Contacts: Brass per QQ-B-626 |
Gold | |
|
Jack |
Body/Metal Parts: Brass per QQ-B-626 |
Gold/Nickel |
|
Center Contacts: Phosphor Bronze per QQ-B-750 |
Gold | |
|
Insulators |
Teflon |
None |
|
Crimp Ferrules |
Annealed copper |
Nickel or Gold per requirement |
Electrical:
|
Impedance |
75 ohm | ||
|
FrequencyRange |
0 - 1 GHz | ||
|
Working Voltage |
335 VRMS max. | ||
|
Dielectric Withstanding Voltage |
1000 VRMS min. | ||
|
VSWR |
Straight |
1.3 max | |
|
Right Angle |
1.5 max | ||
|
Contact Resistance |
Center Contact |
4 Milliohms Max. | |
|
Outer Contact |
2 Milliohms Max. | ||
|
Insulator Resistance |
1000 Megohms min | ||
Mechanical
|

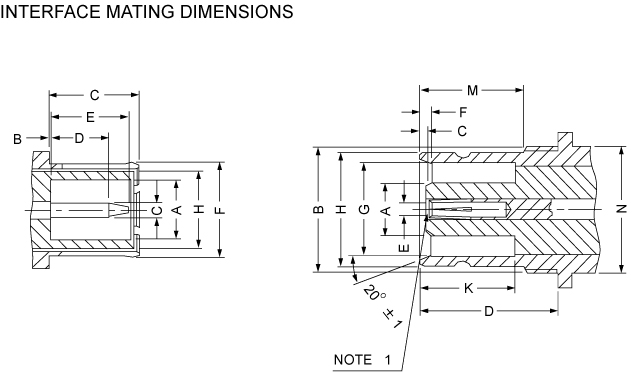

Mating |
M9*0.5 threaded coupling |
|
Contact Retention |
6 lbs. min. |
|
Durability(Mating) |
500 cycles min.(for Beryllium copper Jack contact only) |
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
