Hook Lock
HOOK LOCK Plug for Automobile Connector
| P/N |
Optional cable group |
Impedance |
| LC-7652 |
N/A |
50Ω |
| - |
- |
| - |
- |
| - |
- |
| - |
- |

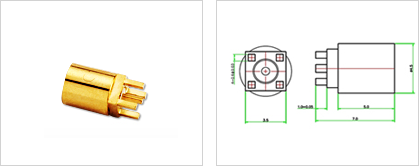

HOOK LOCK PCB for Automobile Connector
| P/N |
Optional cable group |
Impedance |
| LC-7618 |
N/A |
50Ω |
| - |
- |
| - |
- |
| - |
- |
| - |
- |
Data
| |
HOOK ON PLUG (LC-7652) |
HOOK ON PCB (LC-7618) |
| Electrical |
| Impdeance |
50Ω |
50Ω |
| Frequency |
DC to 3GHz |
DC to 3GHz |
| VSWR |
1.4 |
1.4 |
| Insertion Loss |
≤ 0.7dB |
≤ 0.7dB |
| Didldctric with Standing voltage |
500V@60Sec |
500V@60Sec |
| Insulation Resistance |
≥ 1000mΩ |
≥ 1000mΩ |
| Contact Resistance |
|
|
| Center |
≤ 15mΩ |
≤ 15mΩ |
| Outer |
≤ 5mΩ |
≤ 5mΩ |
| Mechanical |
| Mating Cycles |
Min. 500 |
Min. 500 |
| Test Condition |
|
|
| Equivalent MIL SPEC |
MIL-STD-202 |
MIL-STD-202 |
| Environmental Data |
|
|
| 2002/95/EC(RoHS) |
Compliant |
Compliant |
| Quality Assurance |
| Check |
n=5/LOT |
n=5/LOT |
| Acceptable Quality Level |
AQL=0.0005 |
AQL=0.0005 |
